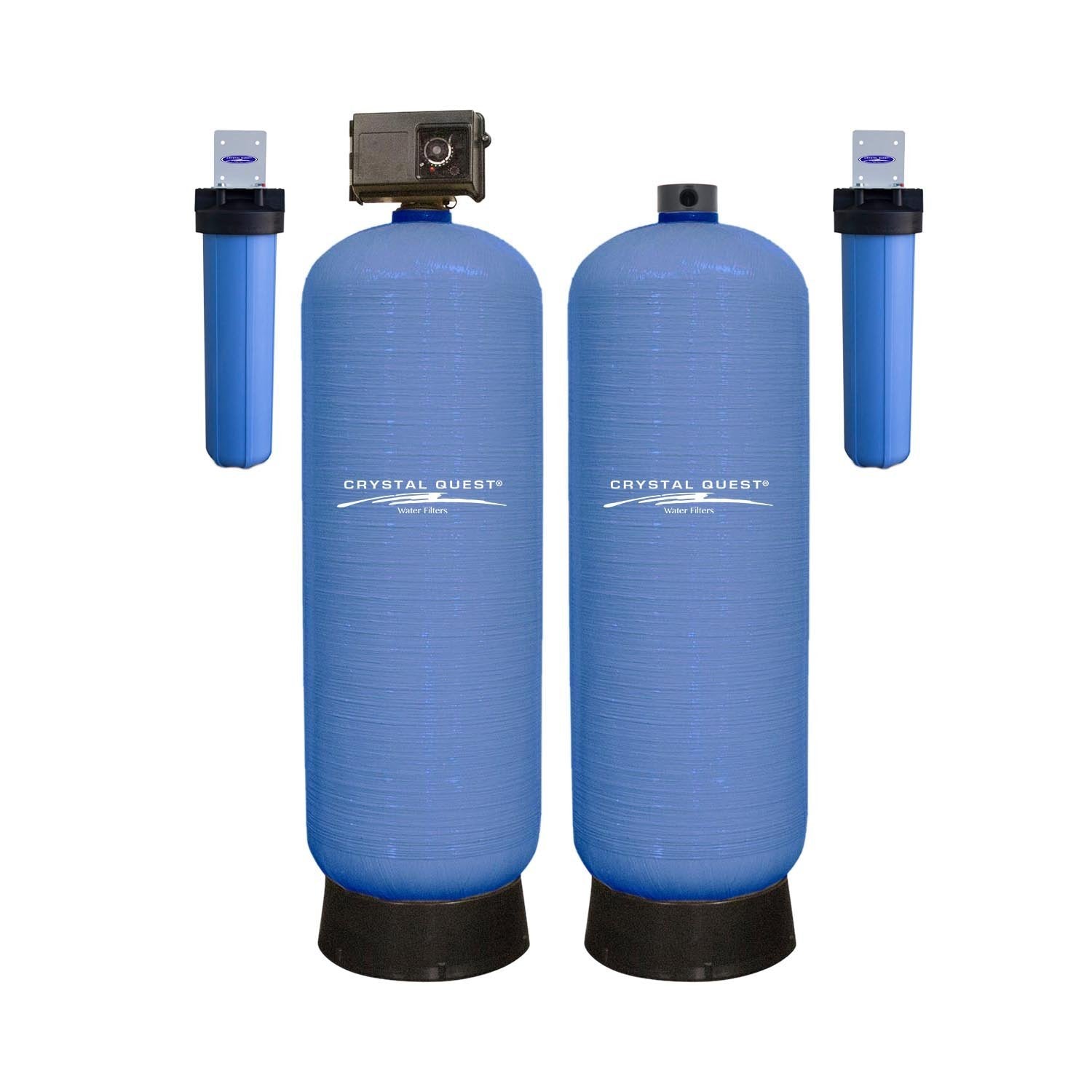

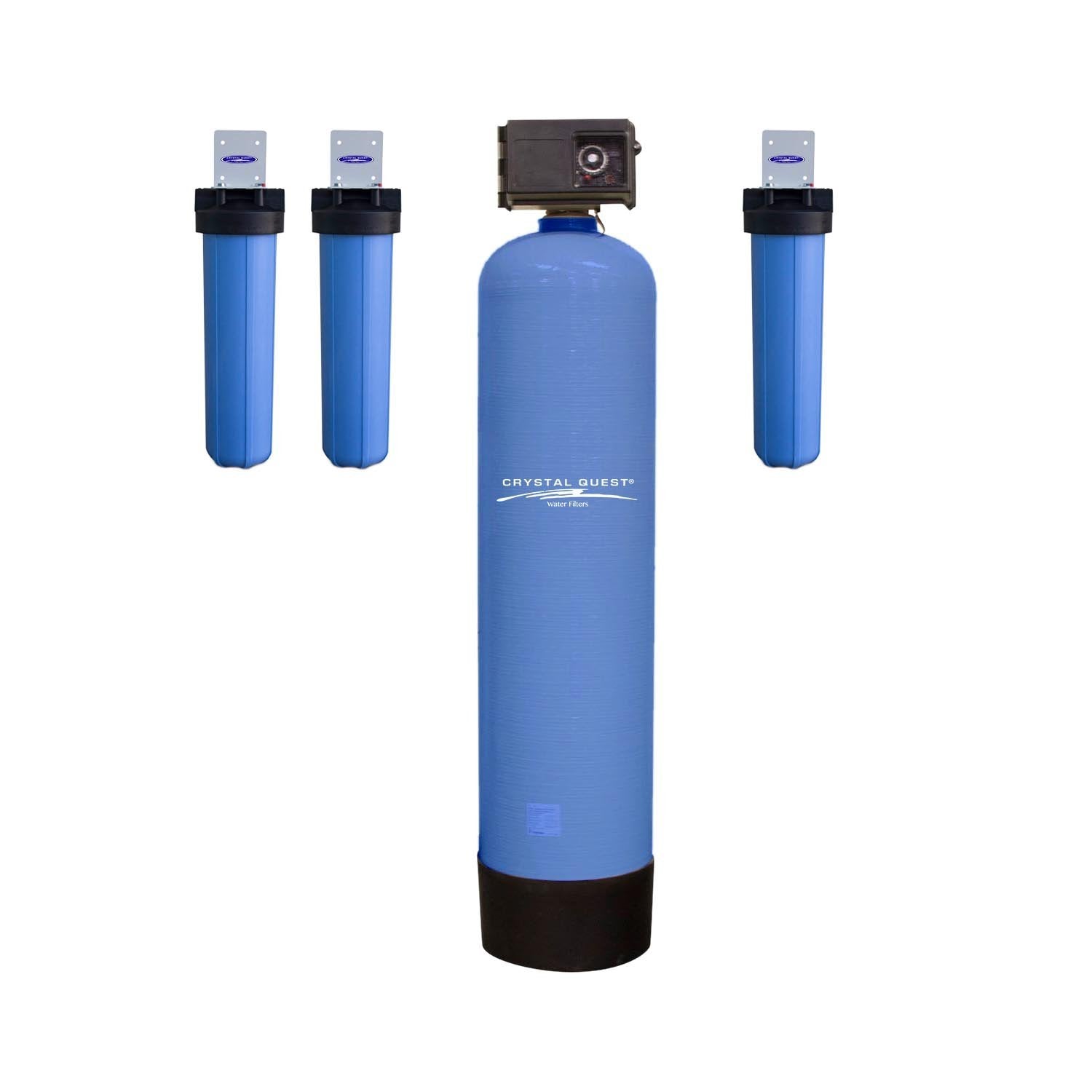

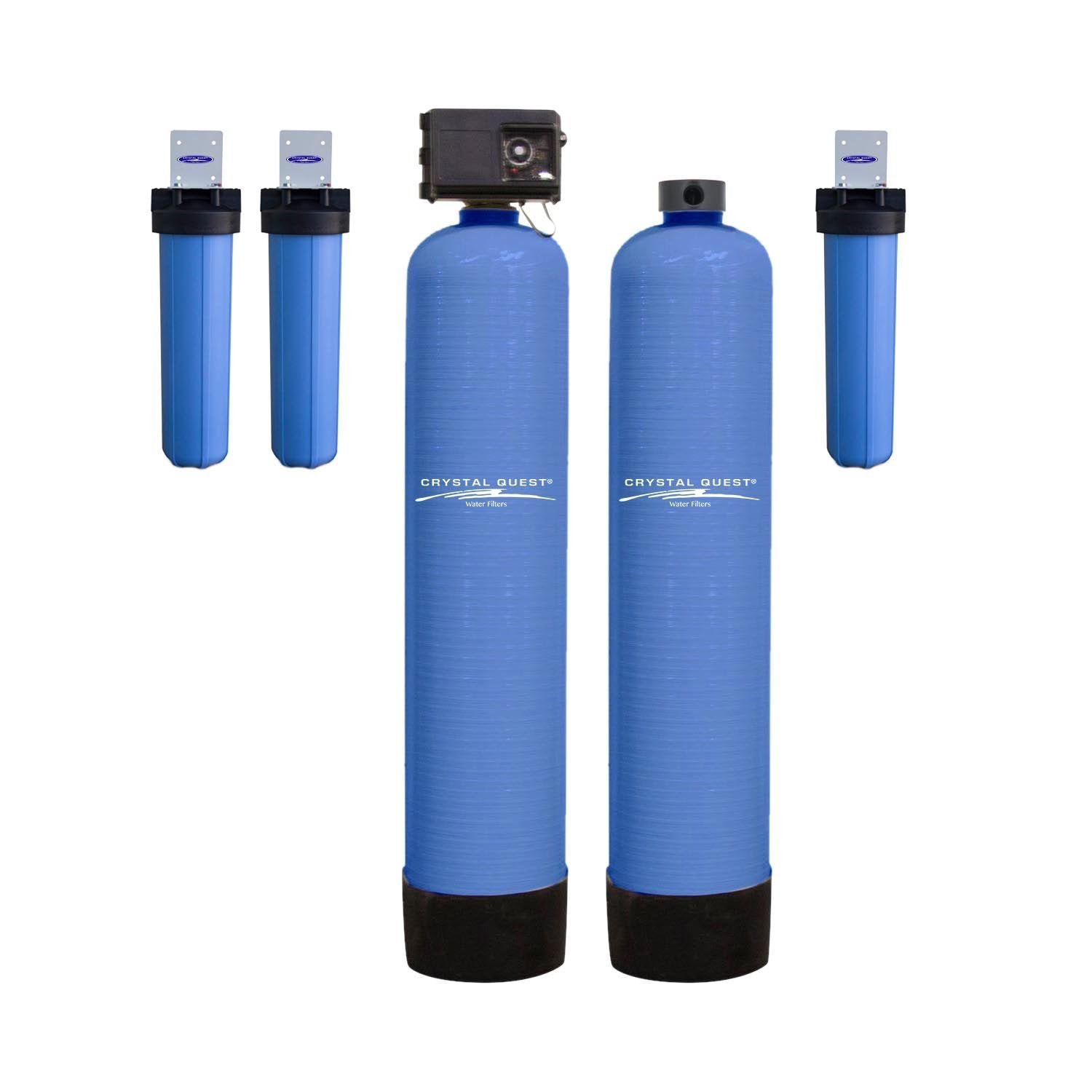

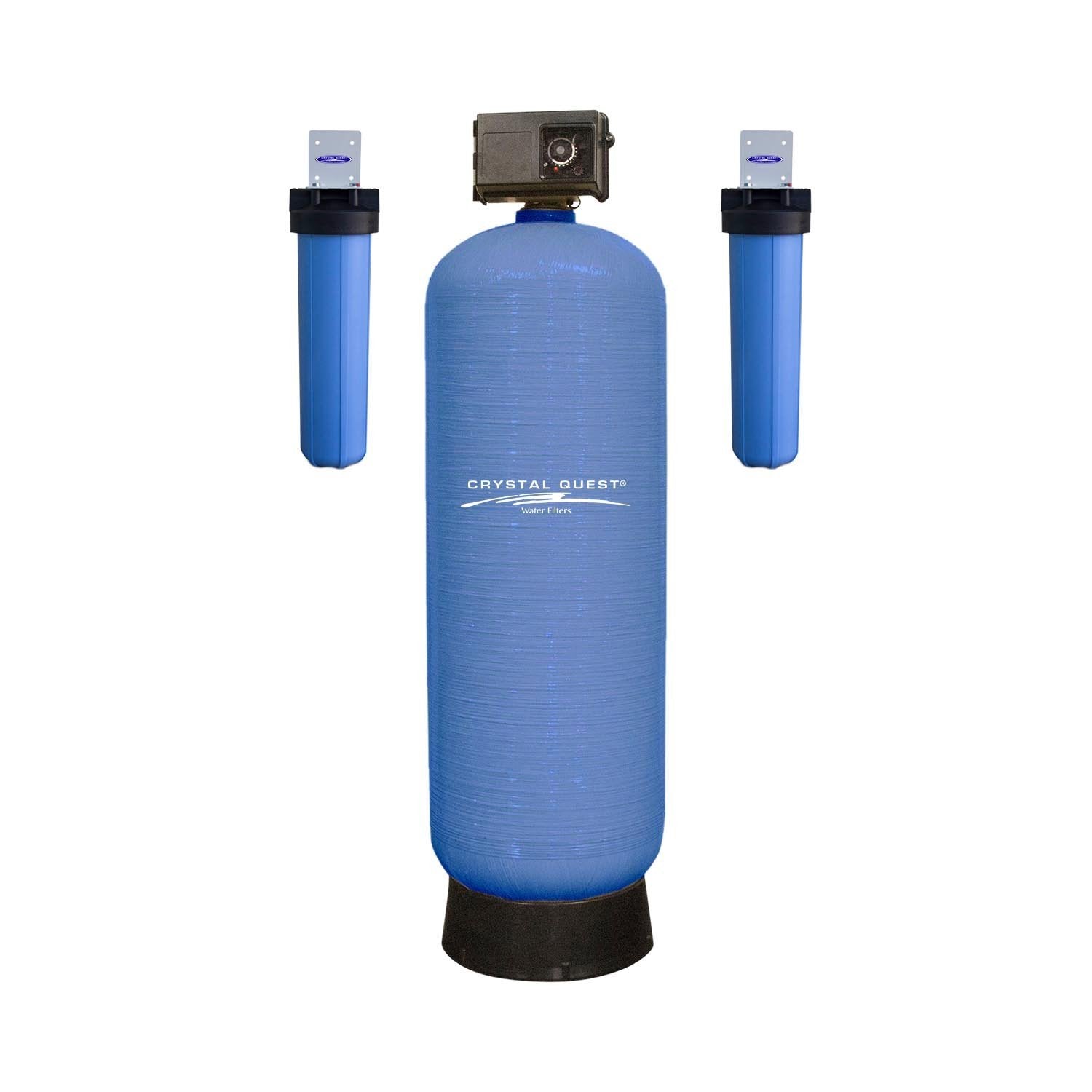

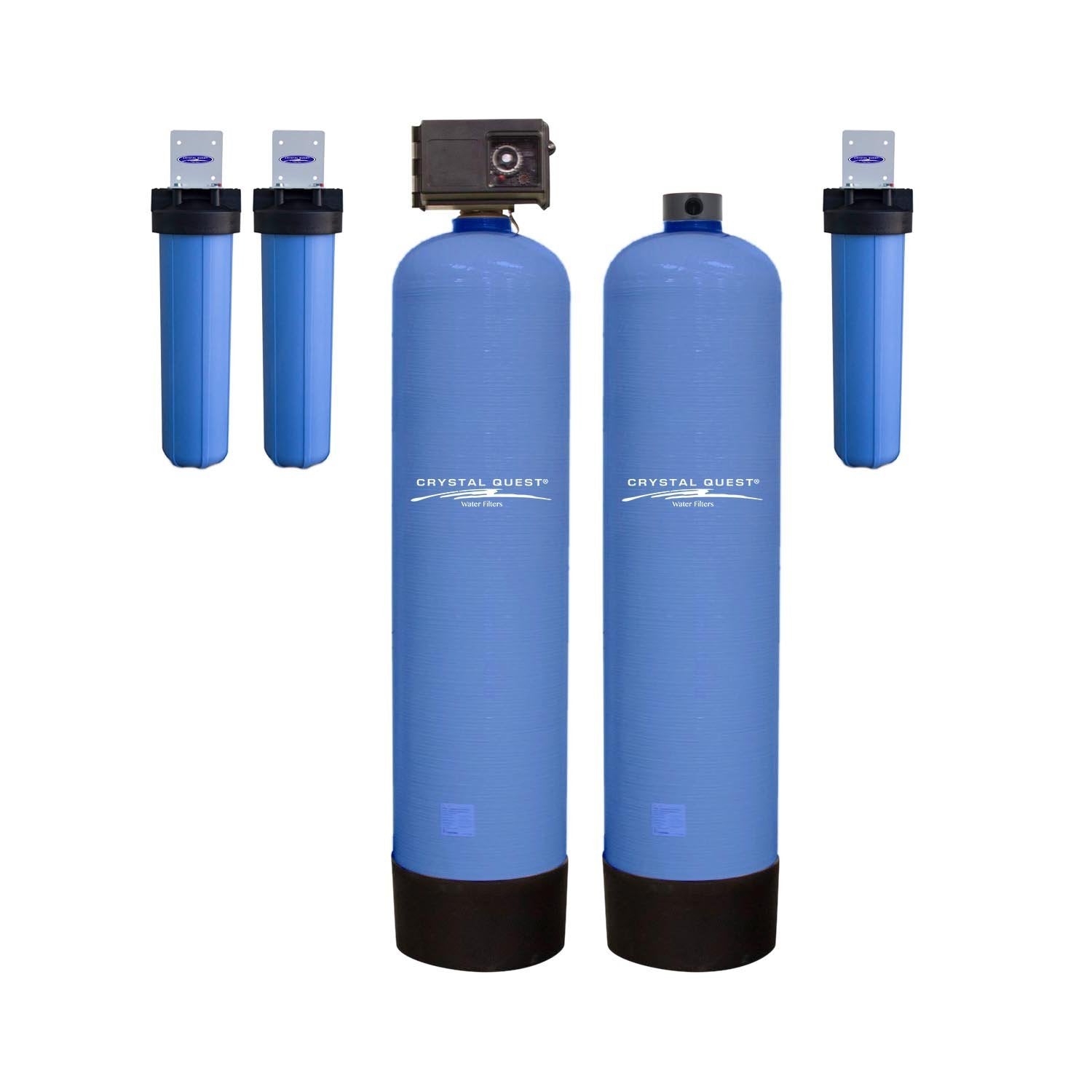

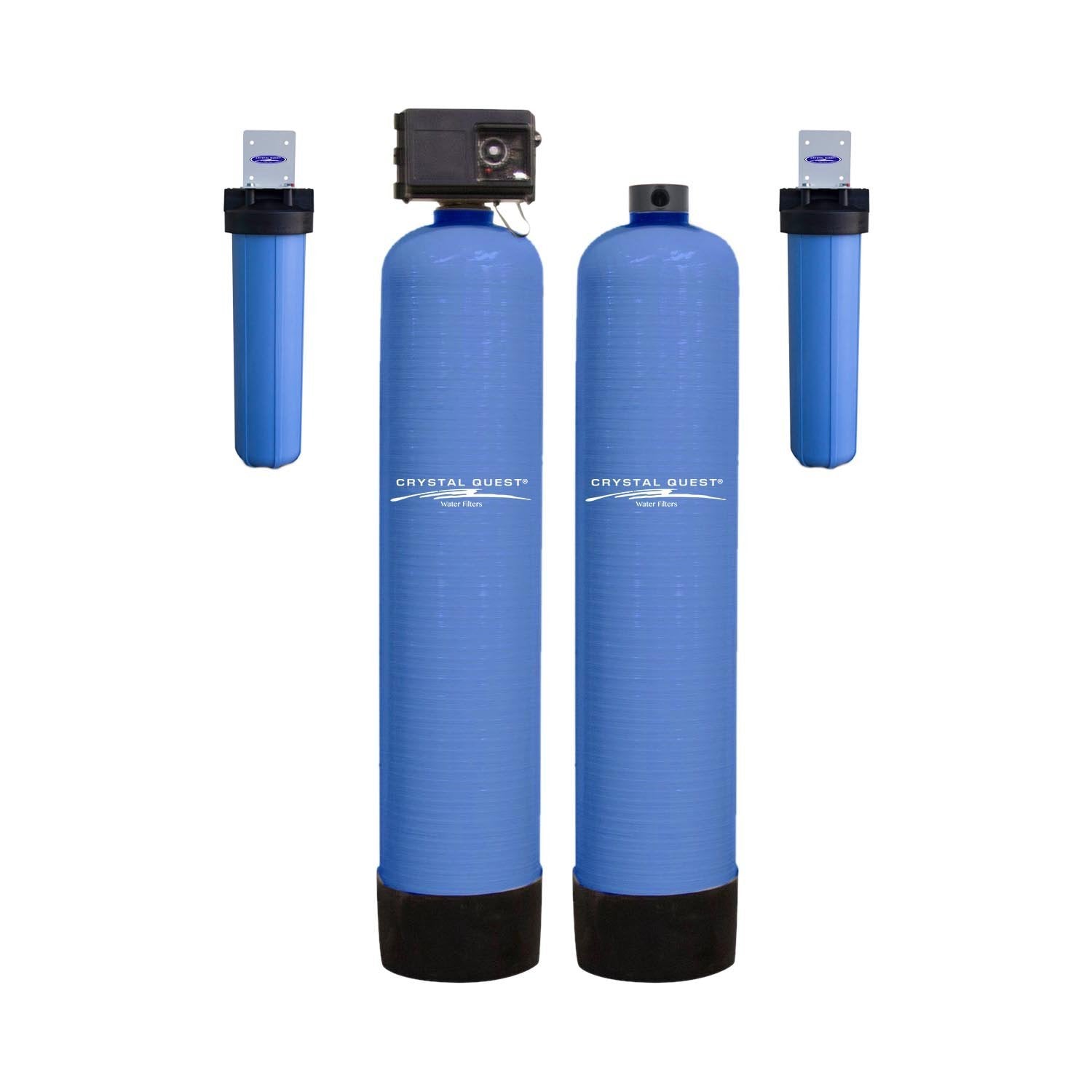

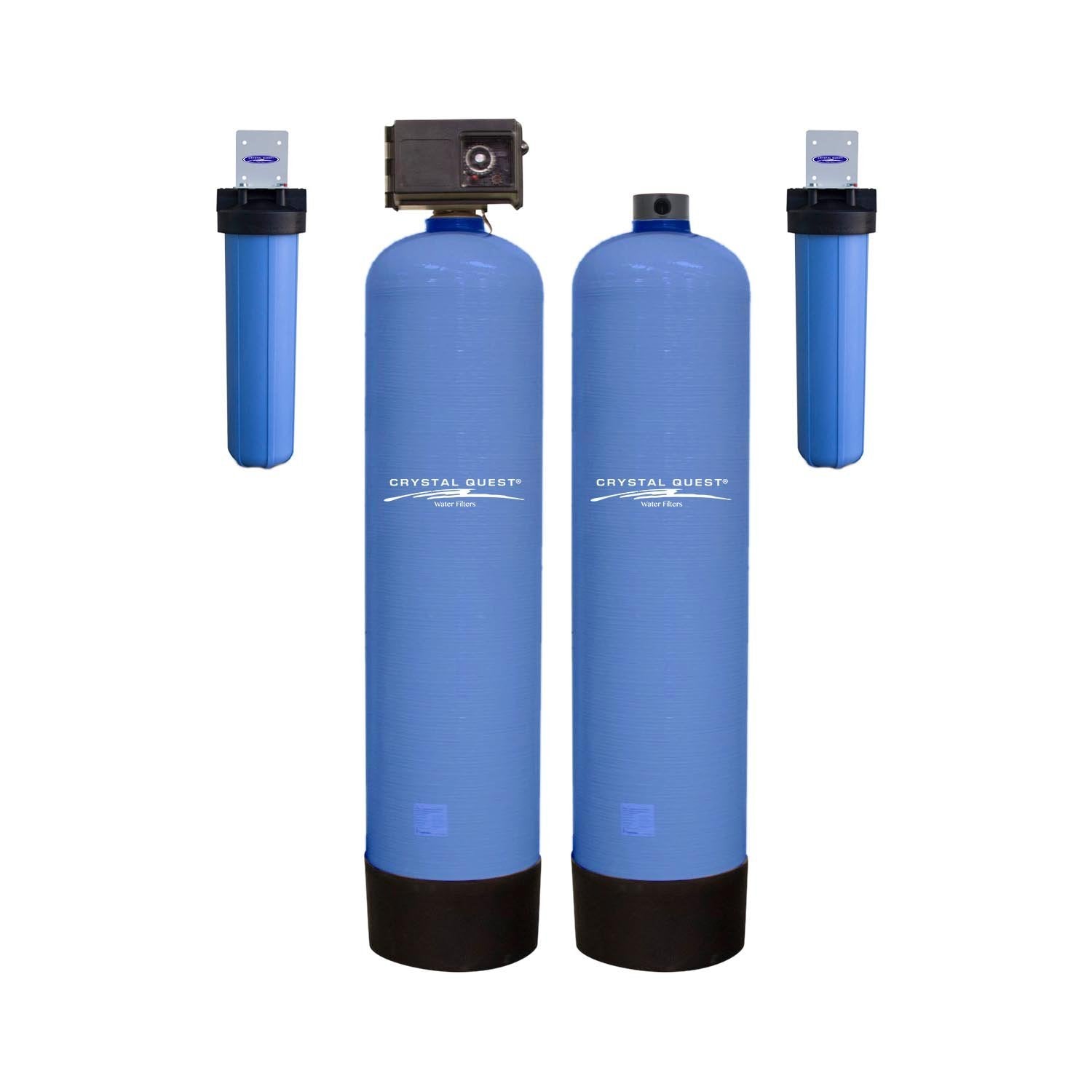

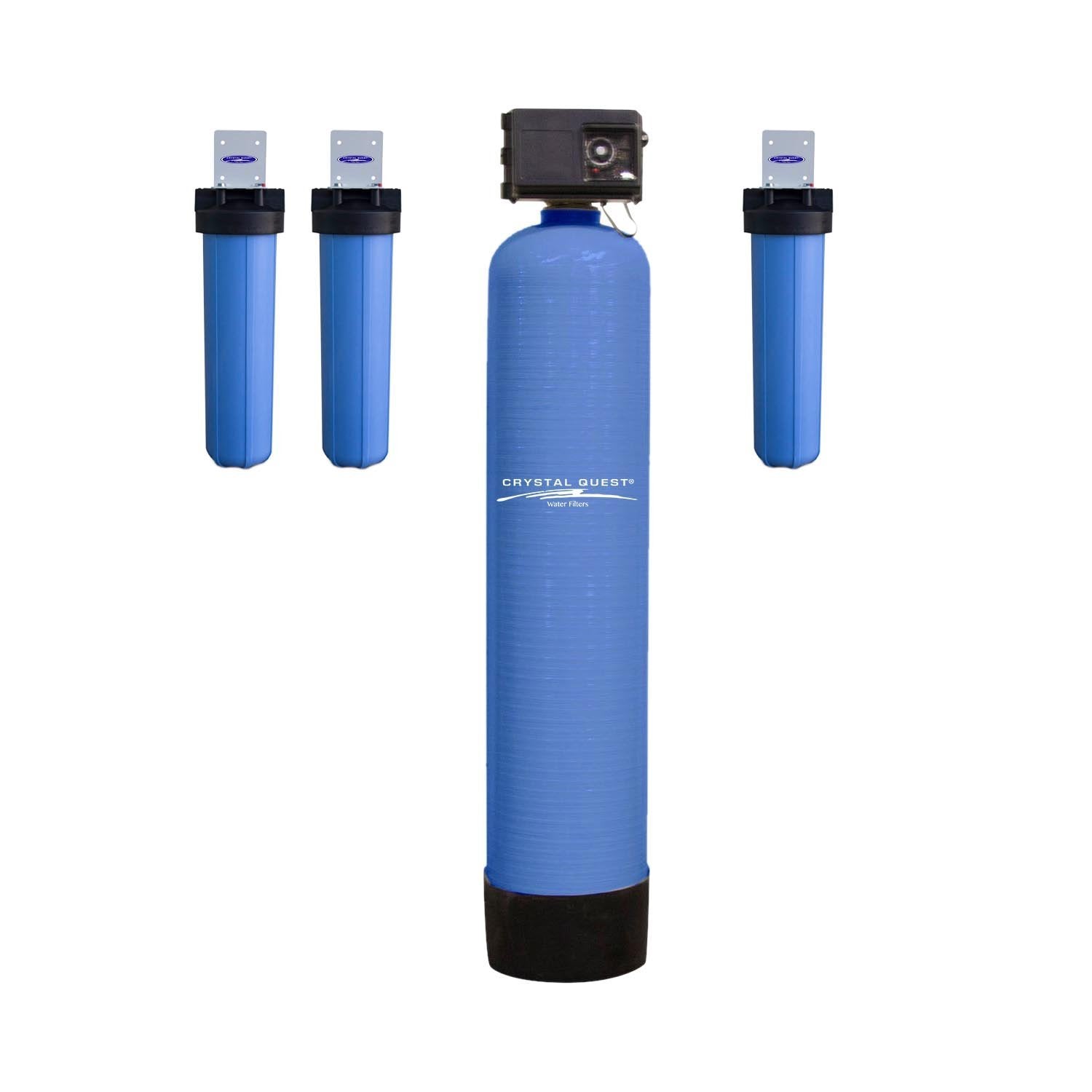

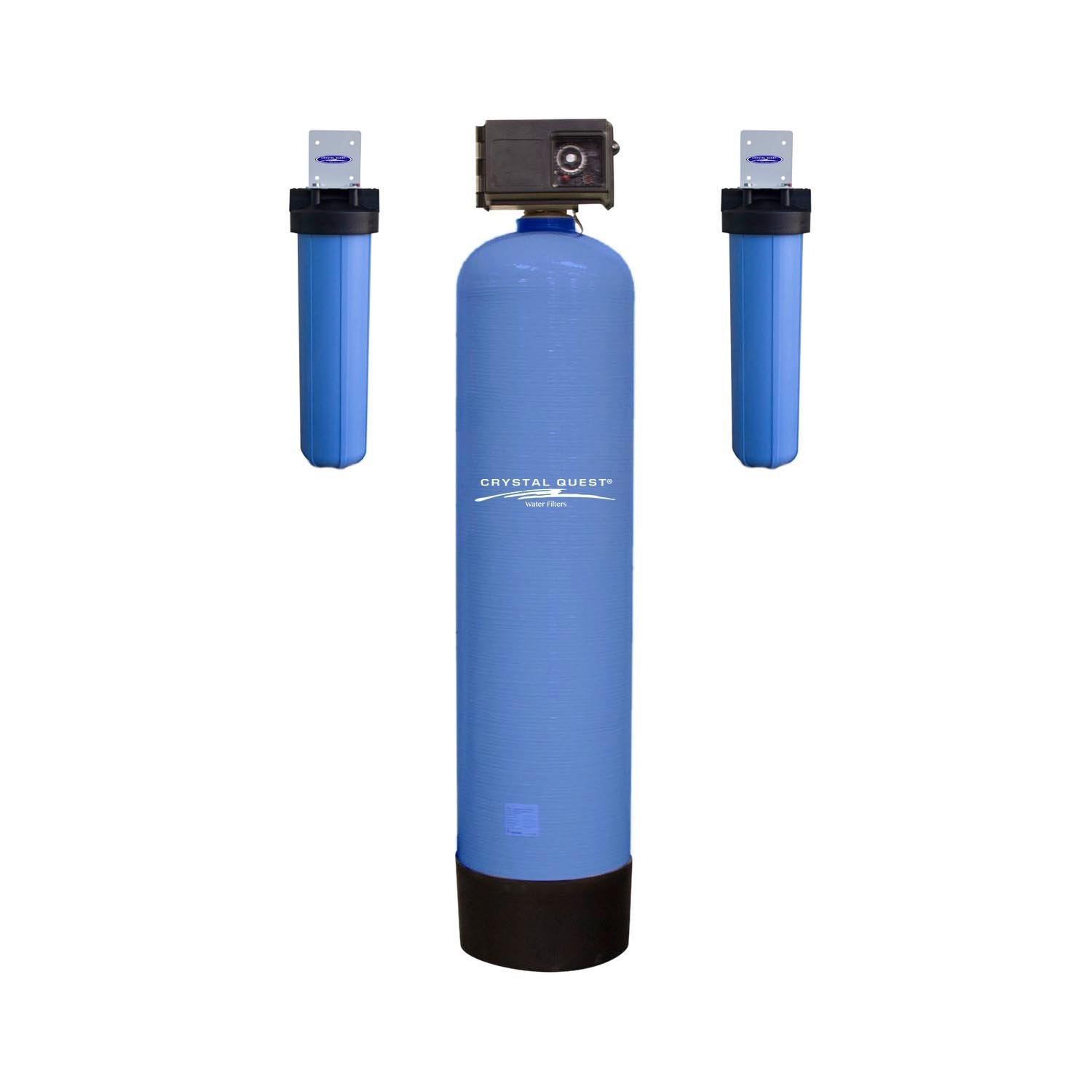

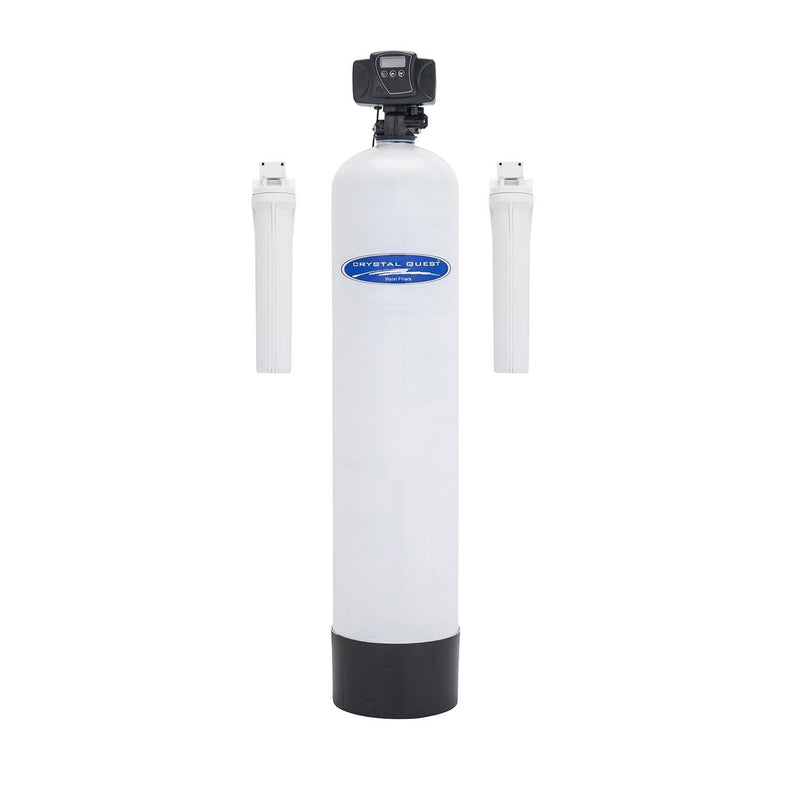

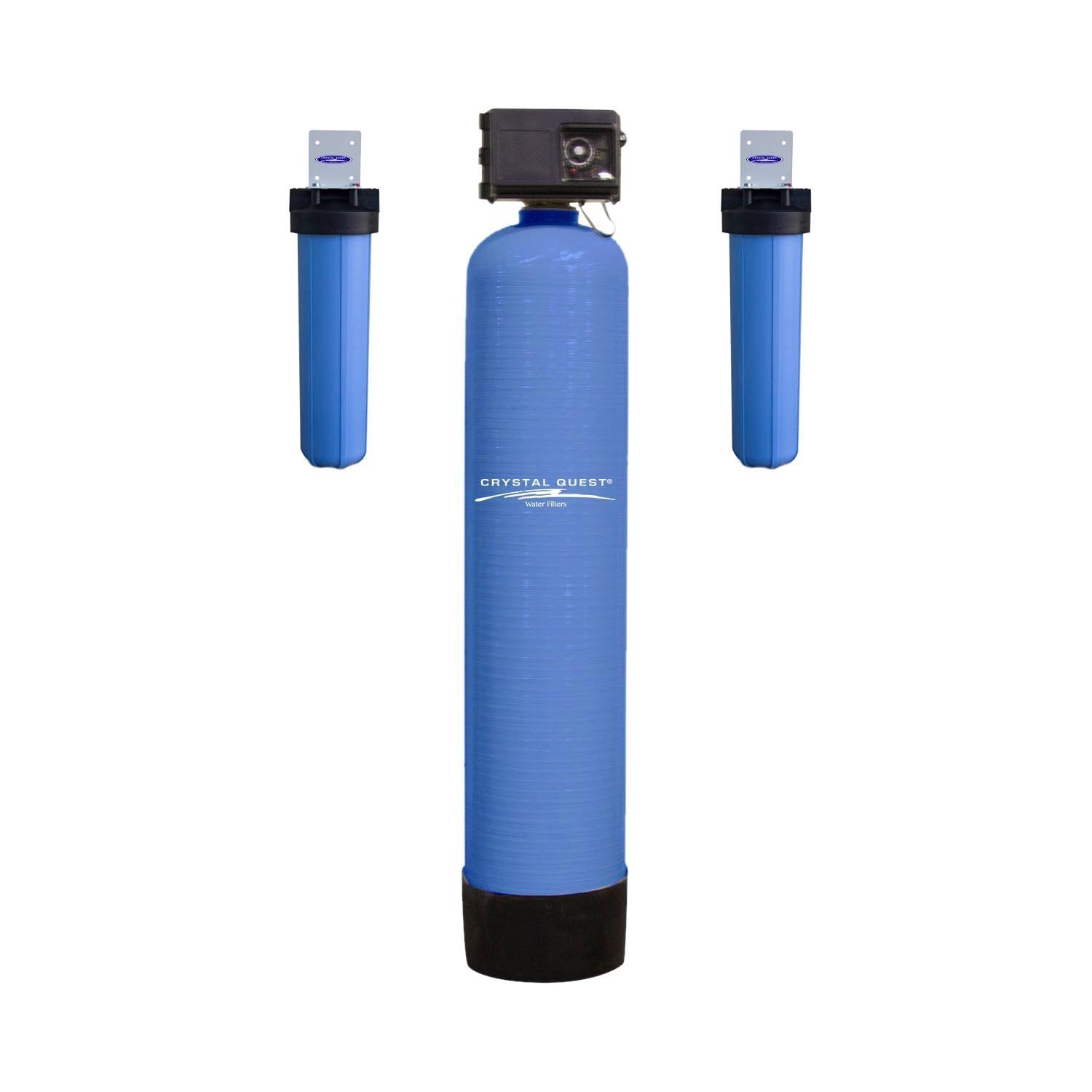

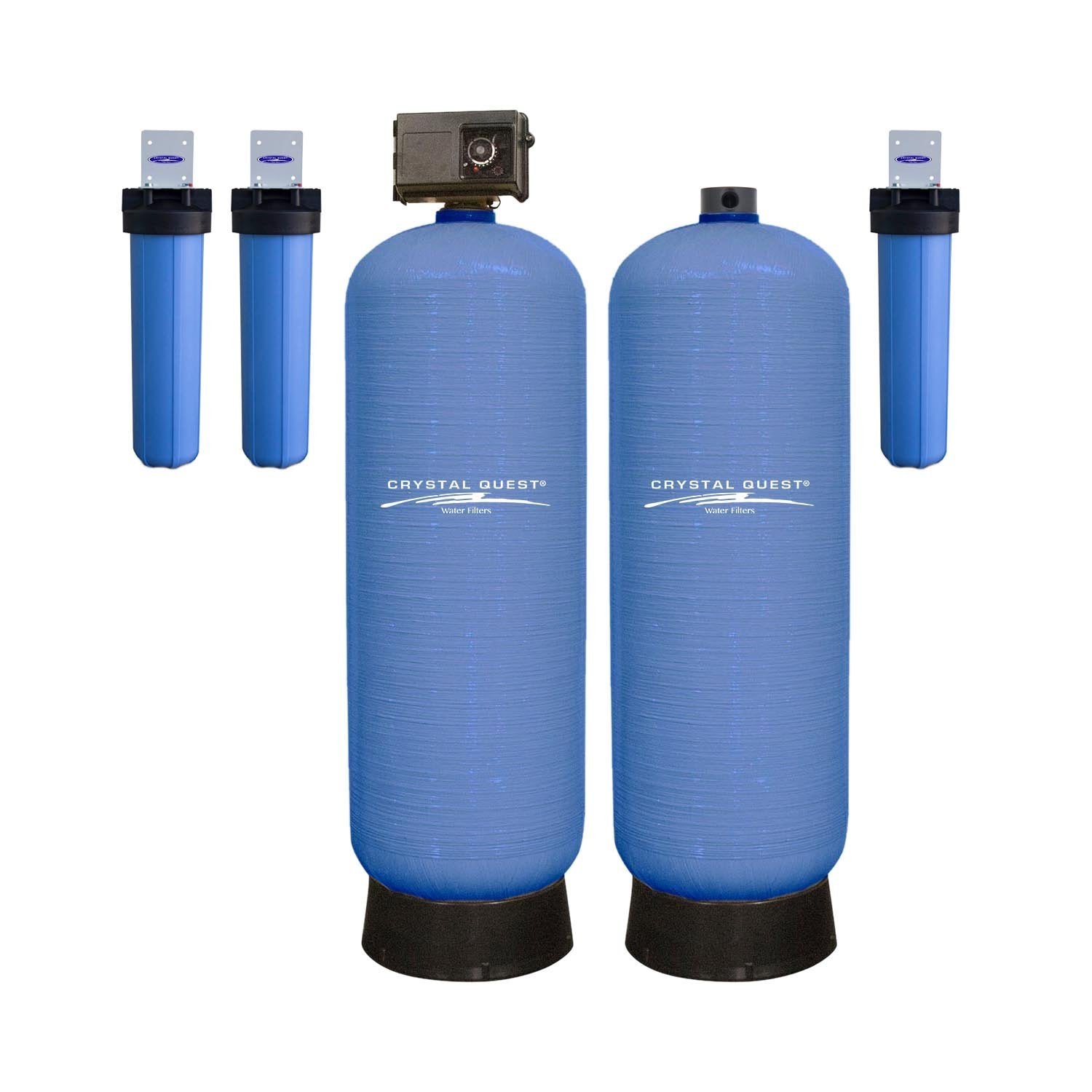

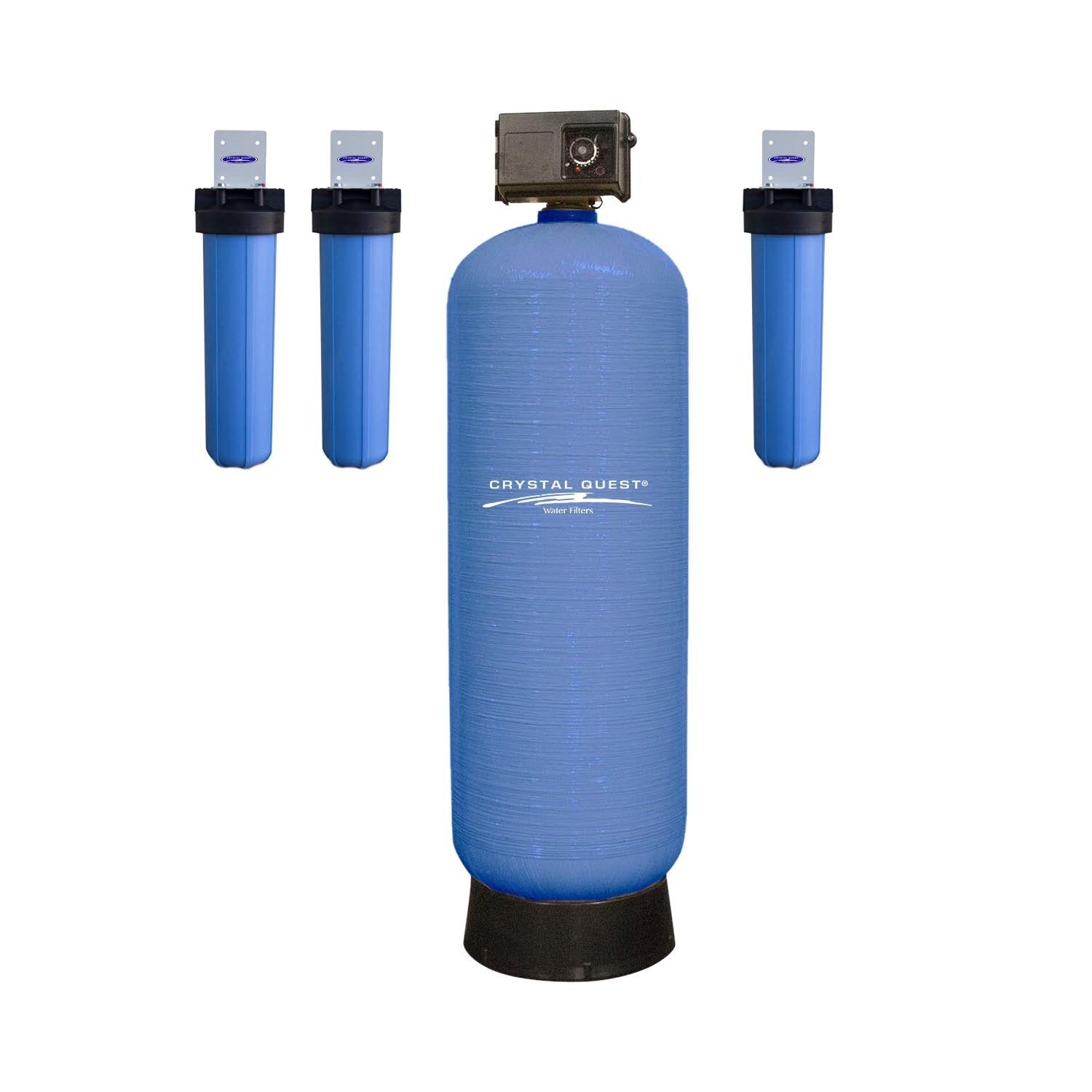

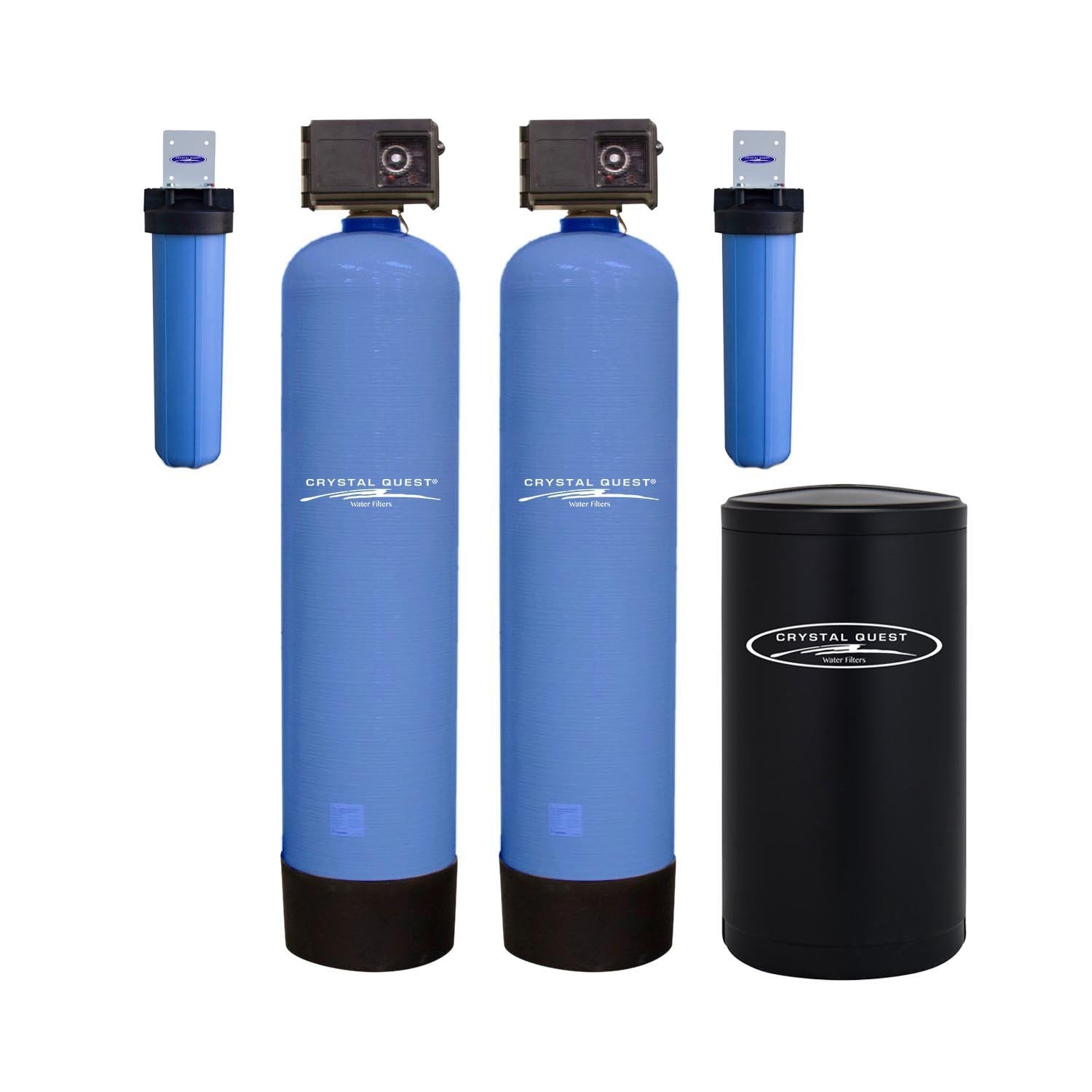

Crystal Quest® High Flow Whole House Water Filter

Everyday Benefits of Filtered Water

• Enhanced Consumption: Experience great-tasting, healthier water for drinking, cooking, and preparing flavorful beverages like coffee and tea, along with crystal-clear ice cubes. It’s also ideal for baby formula, pasta, and soups.
• Household & Family Use: Provide excellent water for pets, plants, and aquariums. Benefit from an unlimited supply of pure water to your kitchen and bathroom.
• Convenience & Cleaning: Eliminate the need for heavy cooler bottles. Use clean water for steam irons, humidifiers, and achieving streak-free results in household cleaning, such as for windows.

System Features

The system is equipped with robust features for reliable operation:

• Timer Control Valves

• Heavy-duty composite fiberglass tanks

• High Flow Distributor

• All-brass, motor-driven control valve with fully adjustable backwash cycles

• Self-adjusting backwash controller

• Flow controller to limit backwash flow
• Engineered for both commercial and industrial use

High-Quality Hydration

It's widely acknowledged that drinking sufficient water daily (often suggested as eight glasses) is vital for a healthy lifestyle. With our High Flow Whole House Water Filters, you are assured of delicious, refreshing, safe, and top-quality drinking water. These filters are engineered for maximum filtration and performance while requiring minimal maintenance.

SMART Water Filter

This filter utilizes our SMART special house blend, which includes:

• Two types of coconut-shell Granulated Activated Carbon (GAC), including Catalytic GAC.
• Two types of Eagle Redox Alloys® (9500 & 6500).
• Anion exchange resin.

This advanced blend effectively reduces, removes, or reduces various contaminants such as heavy metals, chlorine, chloramine, pesticides, herbicides, pharmaceutical by-products, and other inorganic substances like petroleum byproducts. Ceramic and Tourmaline balls are also incorporated to enhance the water and maintain a more alkaline pH.

System Filtration Stages

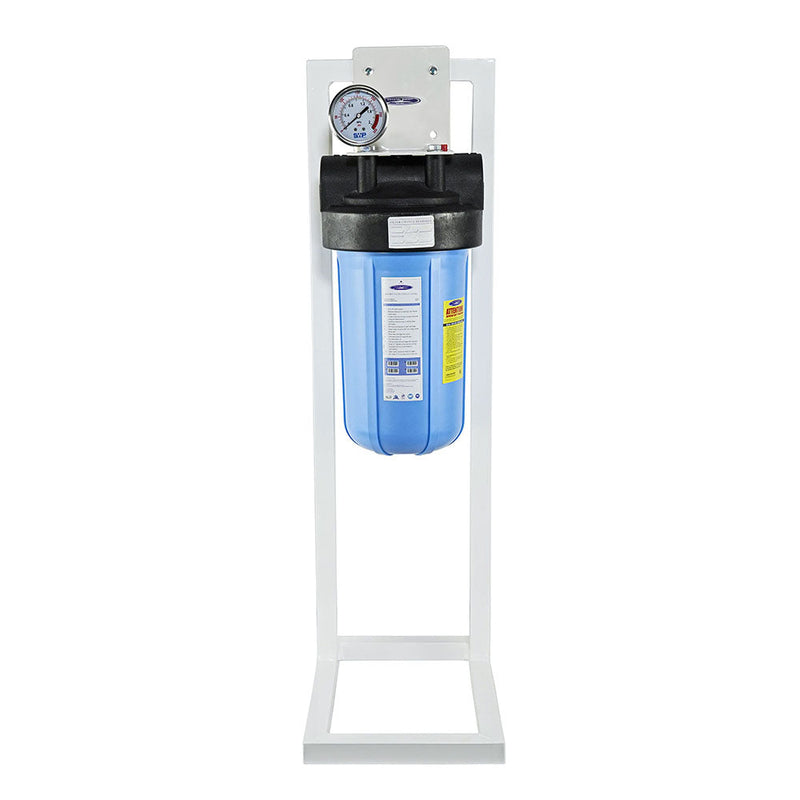

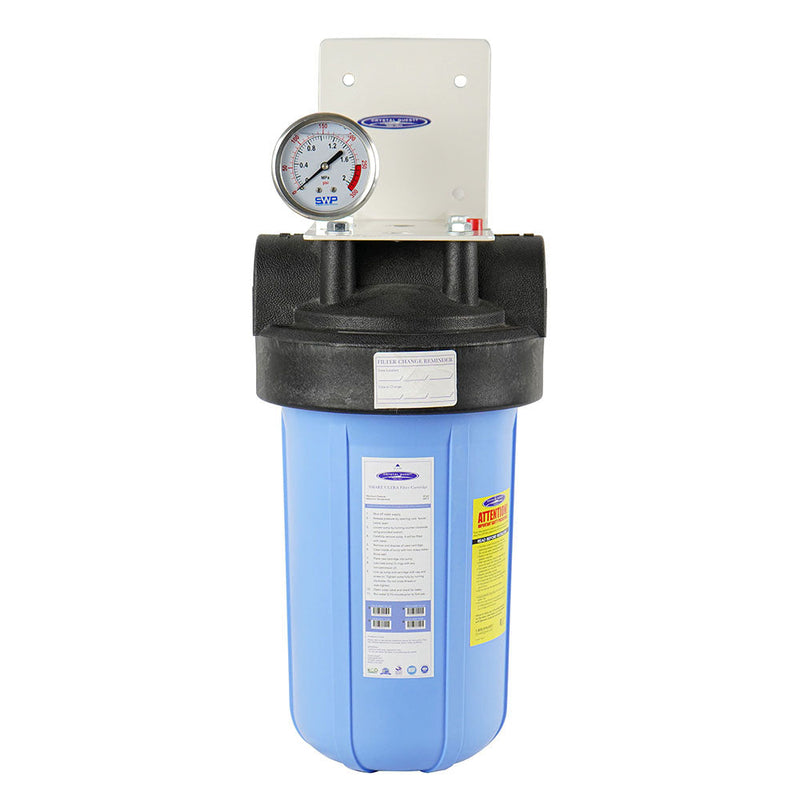

• Pre-filtration: Water initially flows through a 20-inch sediment cartridge that removes particulate matter like sediment, silt, sand, and dirt.

• Post-filtration: After primary filtration, water passes through a 20-inch solid carbon cartridge. This stage is designed for removing or reducing volatile organic compounds (VOCs) and any remaining insecticides, pesticides, and industrial solvents.

SMART Media Tank

Water flows through our SMART Multimedia, a specialized formulation which includes:

• Two types of coconut shell Granulated Activated Carbons (Standard & Catalytic GAC).
• These GACs are infused with our Eagle Redox Alloys® 6500 & 9500.
• Ion exchange resin.

This combination targets contaminants such as heavy metals (e.g., lead & mercury), chlorine, chloramine, and inorganic products like herbicides, pesticides, and petroleum/pharmaceutical by-products, while also working to achieve a balanced pH.

Alkalizing (Eagle) Water Filter

This comprehensive filter system includes several stages:

• Pre-filtration: Water first passes through a 20-inch sediment cartridge to remove sediment, silt, sand, and dirt.

• Post-filtration (Carbon Block): The water then flows through a 20-inch solid carbon cartridge for removing volatile organic compounds (VOCs) and any lingering insecticides, pesticides, and industrial solvents.

• Ultrafiltration (UF) Membrane: Next, water passes through a 20-inch, 0.2-micron ultrafiltration (UF) membrane for fine purification.

• Alkalization & Mineralization: The water continues through a bed of a special blend of calcium carbonate media. This stage alkalizes, ionizes, and remineralizes the water, effectively raising its pH level.

• Ionizing Media: Finally, water travels through a special blend of natural mineral and infra-red balls integrated into our Ionizer media for further water enhancement.

Eagle Media Tank

This tank features distinct filtration media:

• Water passes through coconut shell granulated activated carbon (Arsenic-Free GAC™). GAC is a universally recognized and regularly used adsorbent, effective for removing or reducing a wide variety of organic contaminants, as well as improving taste and eliminating odors from drinking water.
• The water then flows through two beds of Eagle Redox Alloy® (ERA® 6500 & 9500) media. This media utilizes a natural electrochemical oxidation-reduction and adsorption process to reduce or remove many unwanted contaminants from the water.

Magnetic Water Conditioner

By incorporating one of our magnet water conditioners with your Eagle system, you can counteract the negative effects of minerals passing through your system. This helps retain system efficiency and prolong equipment longevity without relying on energy costs or chemicals. Our magnetic water conditioner is designed for exceptional long-term performance with minimal maintenance, offering a substantial return on your investment.

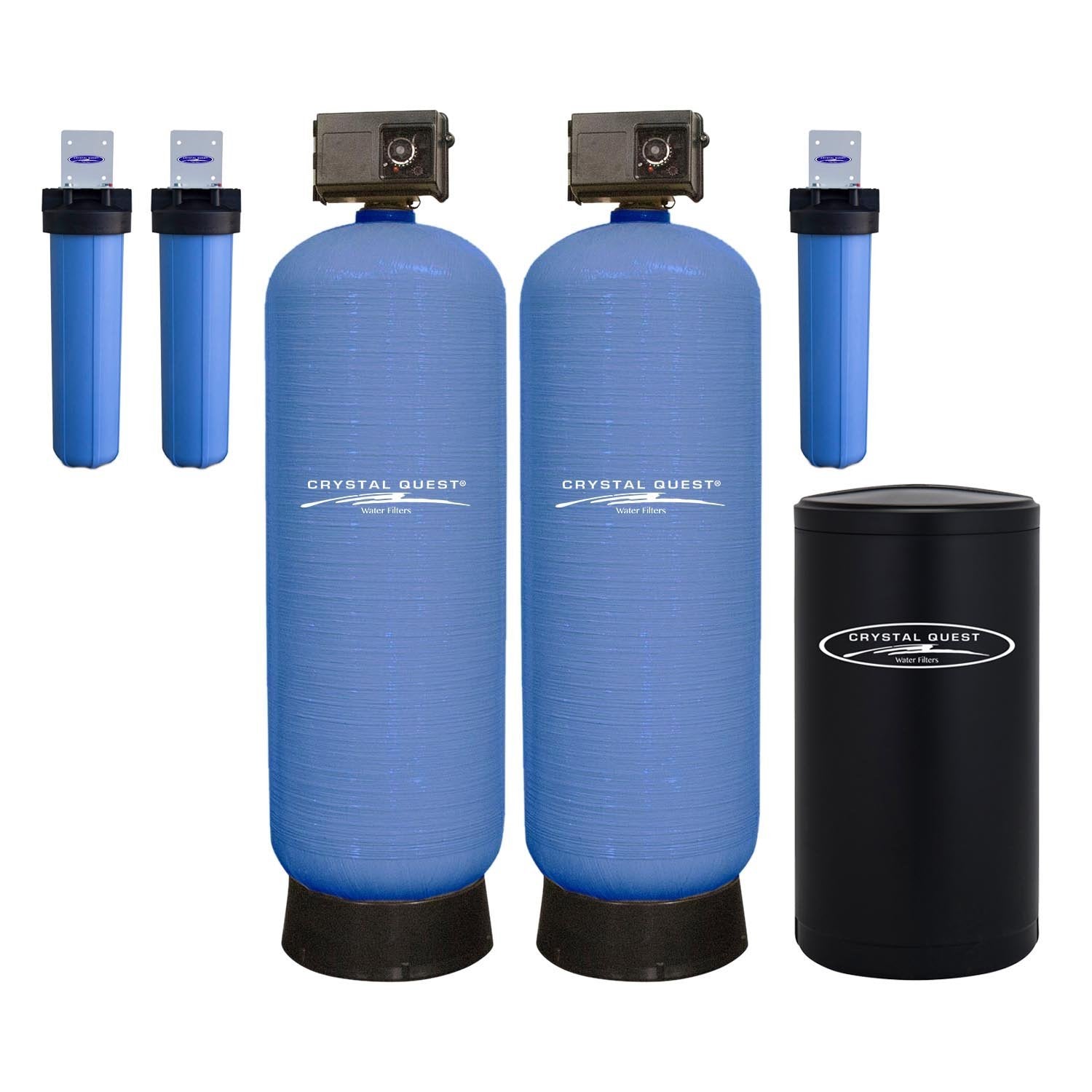

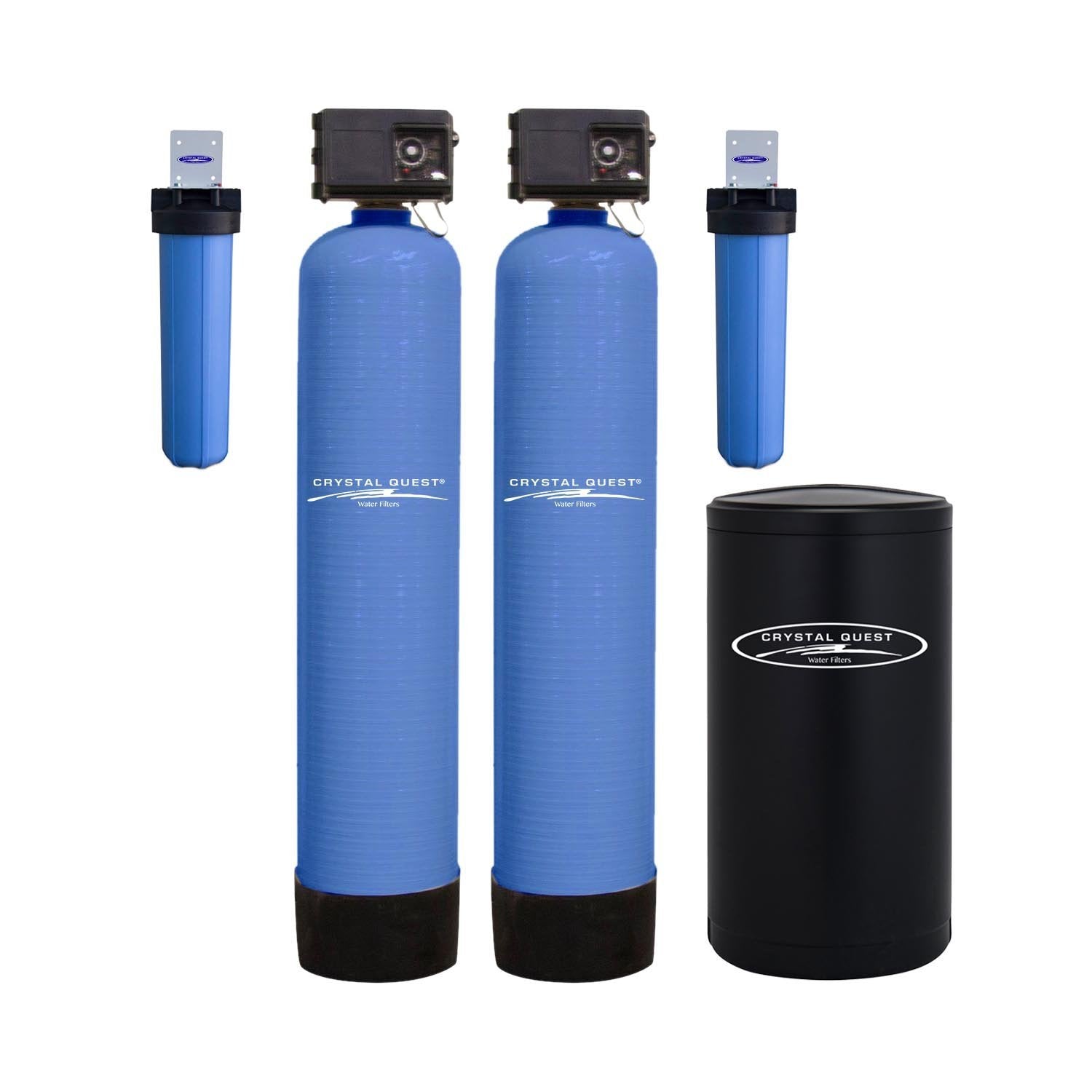

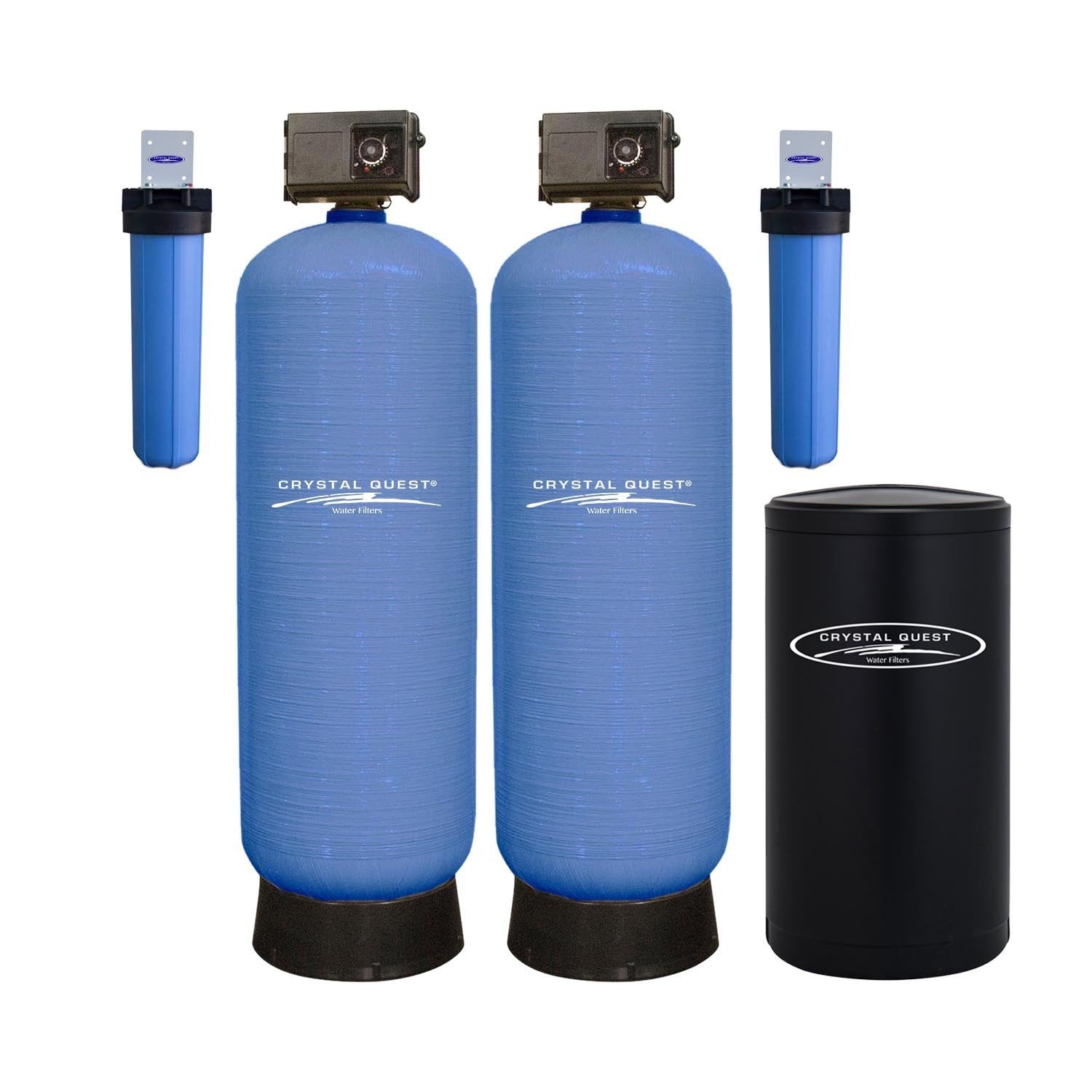

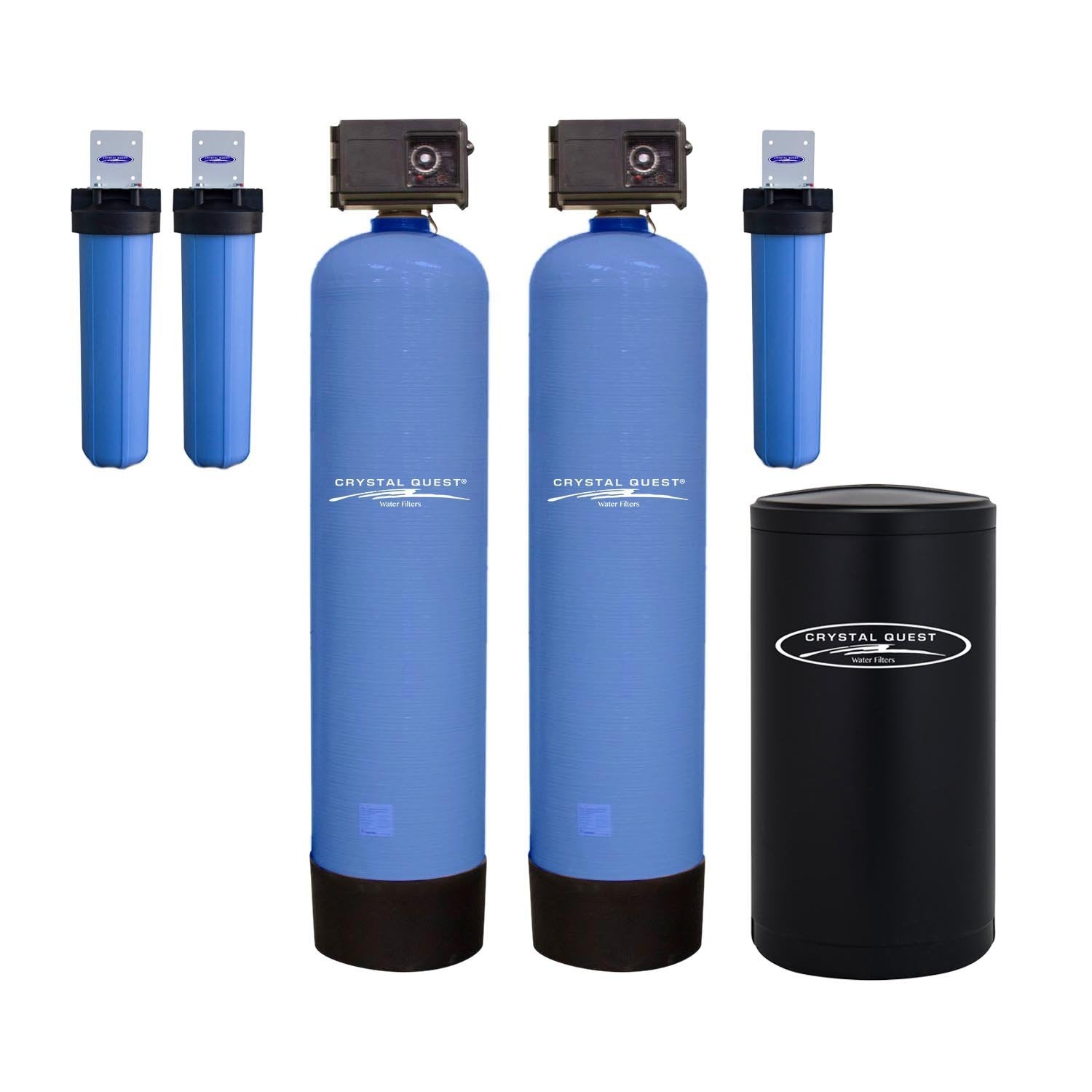

Water Softener (optional)

Water flows through an ion exchange resin and brine water conditioner.

Salt-Free Anti-scale Water Softener (optional)

Crystal Quest Saltless Water Softener is a new technology which transforms the calcium (hardness) of the water into mechanically stable and heat resistant calcite crystals (nanometer size) which no longer cause lime deposits. The calcium is simply rinsed away.

Calcium (hardness) creates scale in pipes, on appliances and other plumbing surfaces. This leads to higher heating and energy costs and expensive repairs to appliances. Scale can also be a source for bacteria to grow, which can be a health concern in drinking water applications. It also removes the already existing scale from pipes and heat exchanger surfaces (descaling effect) and further protects the system from the future formation of scale (scale protection effect).

When hardness levels appear at 25 gpg (grans per gallon) or higher pre-treatment or additional media may be required.  Please consult a specialist for this condition.

Benefits

• Water heater efficiency is increased up to 29%
• Save up to 70% on household detergents and soaps
• Soap and shampoo will lather better, resulting in softer skin and more manageable hair
• Save up to 25% on personal care items such as hair products and shaving cream
• Up to 30% longer life for washing machines, dishwashers, coffeemakers, humidifiers, water heaters, and household plumbing systems
• Fabrics will be whiter, brighter, and last up to 33% longer
• Dishes come clean more easily, without spots
• Bath and kitchen fixtures will have less soap

You probably have hard water. If left untreated, here is what can happen:

• The minerals in hard water will cause yellow stains on plumbing fixtures and be deposited as scale, eventually clogging plumbing and shortening the life of appliances like washing machines, water heaters, and dishwashers by up to 30%. Scale deposits not only cut down on the efficiency of these appliances, they cost you money, increasing both energy and maintenance bills.
• Hard water dulls your hair and dries your skin. Shaving is more difficult in hard water.
• Hard water can leave unsightly film buildup on glasses and dishes.
• Hard water leaves a filmy soap ring around bath and kitchen faucets, which makes cleanup more difficult.

Standalone Specifications

Softener Specifications

Anti-scale Specifications

Replacement Media

Replacement Cartridges

* The 2-7/8"x20" UF Cartridge, fits inside the 4-5/8"x20" filter housing.
