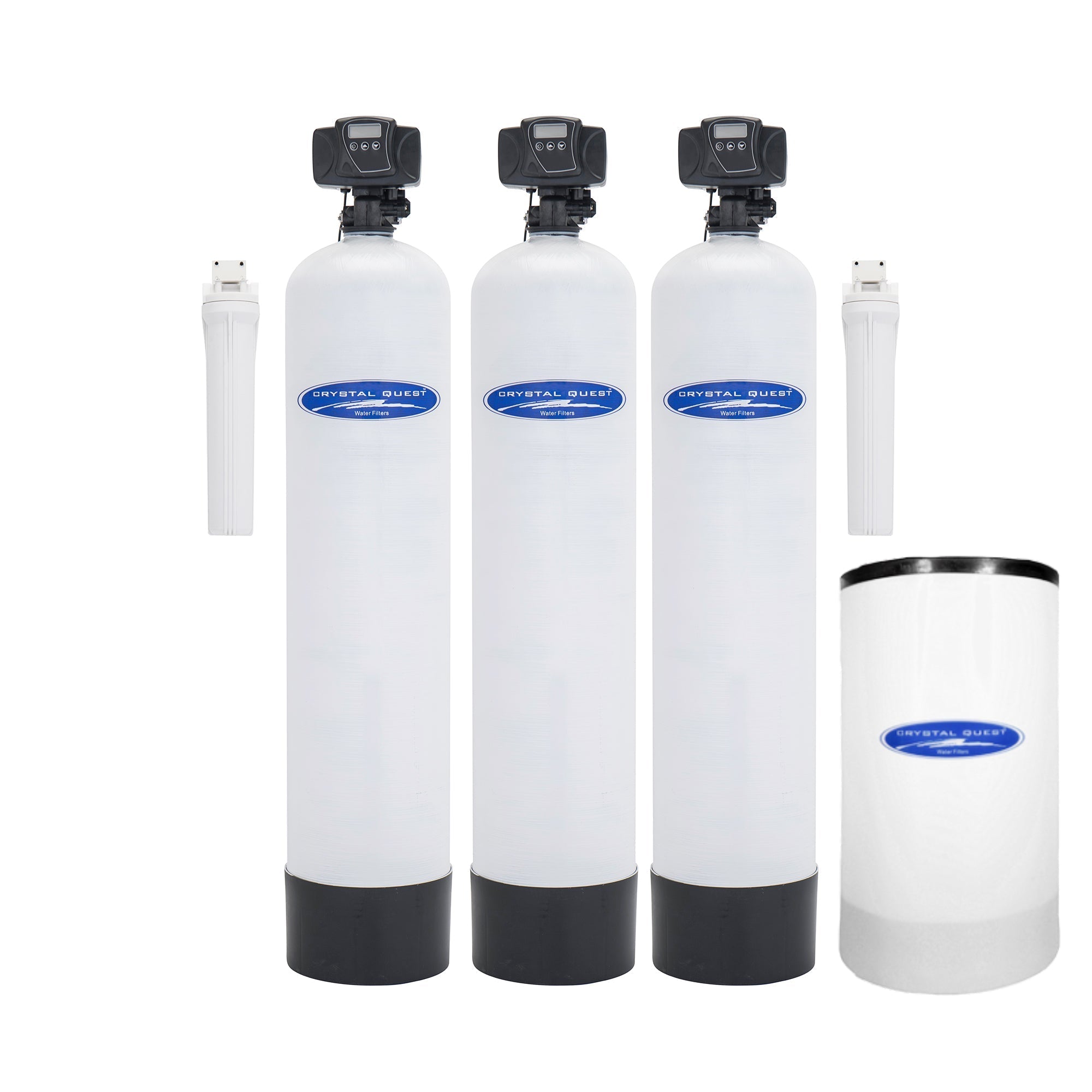

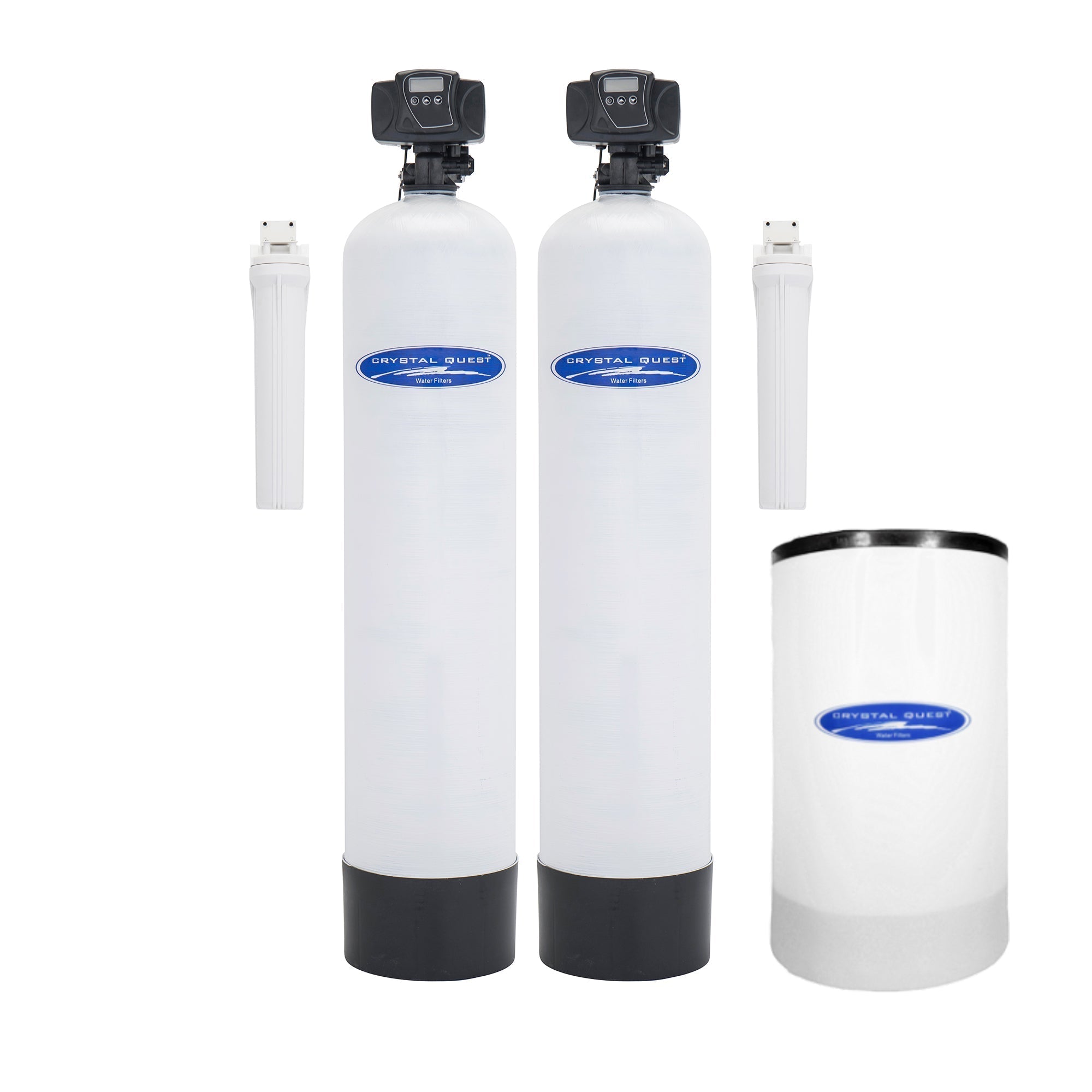

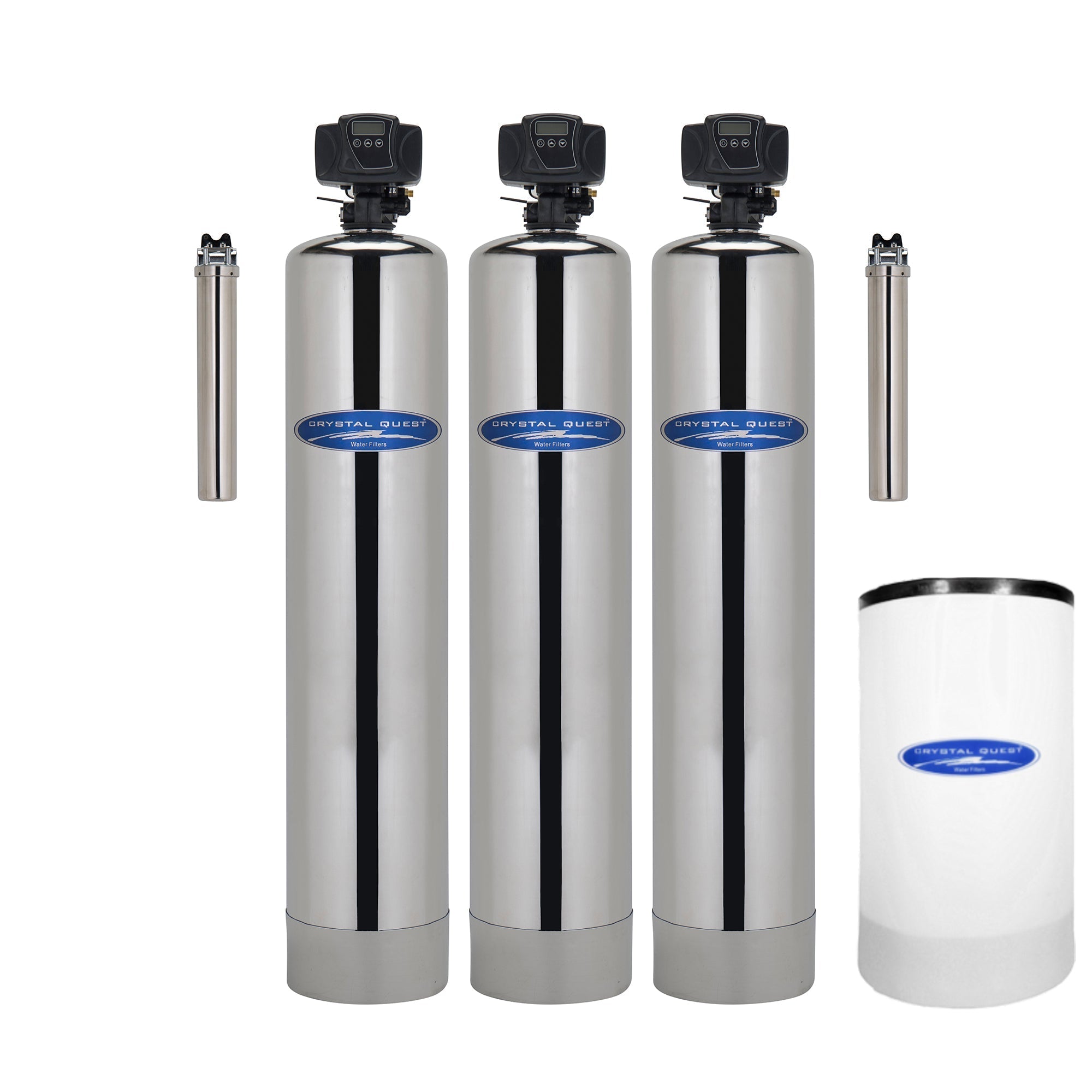

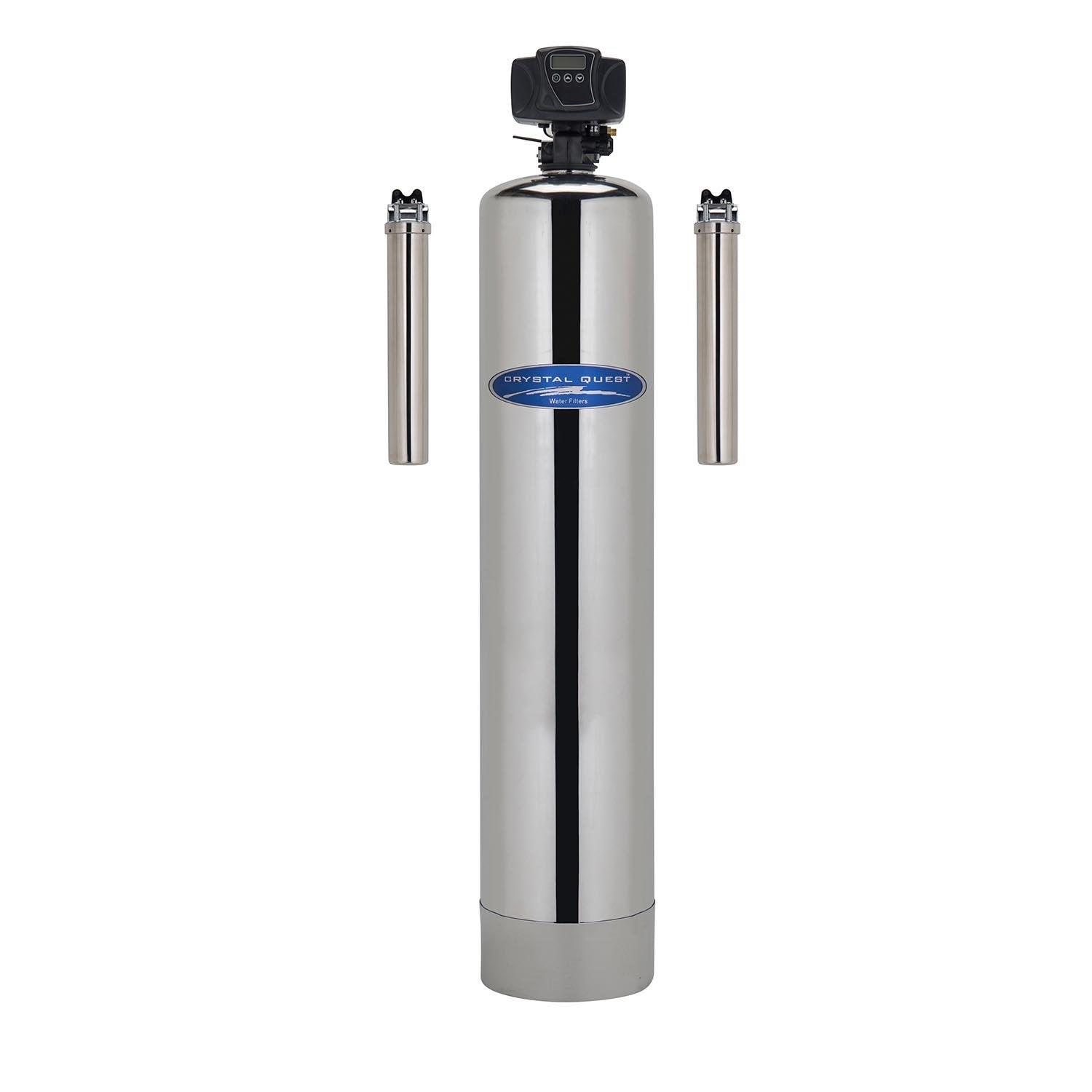

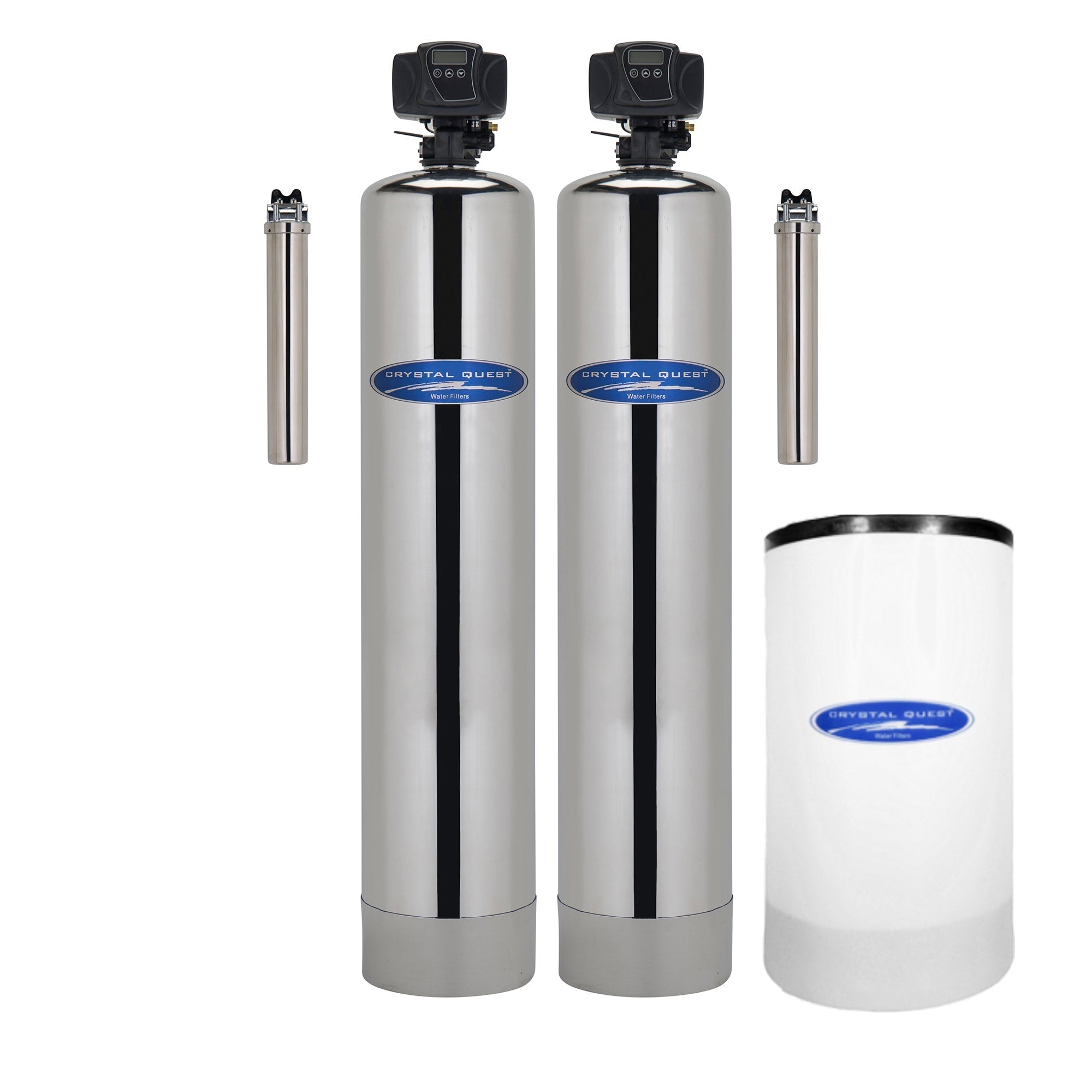

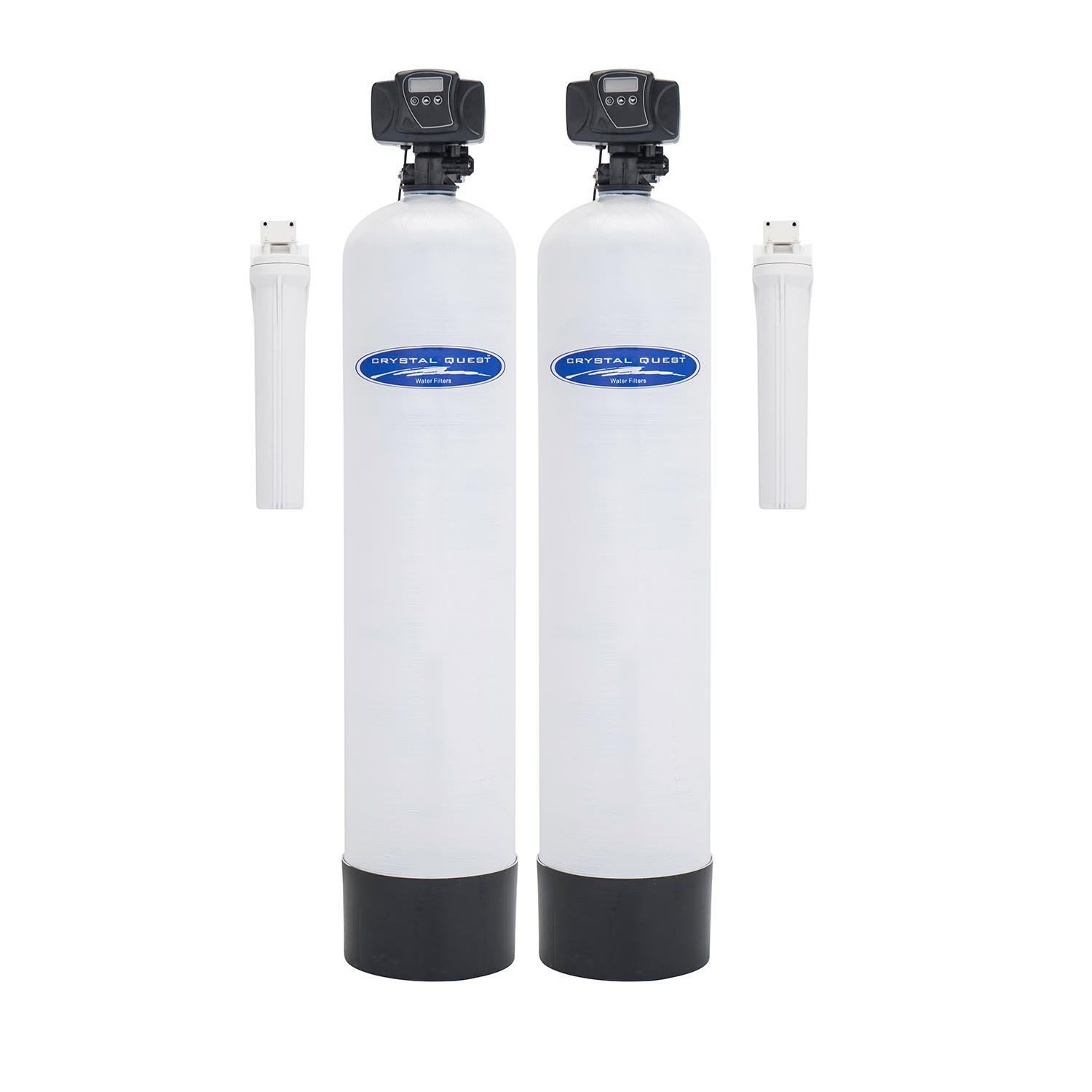

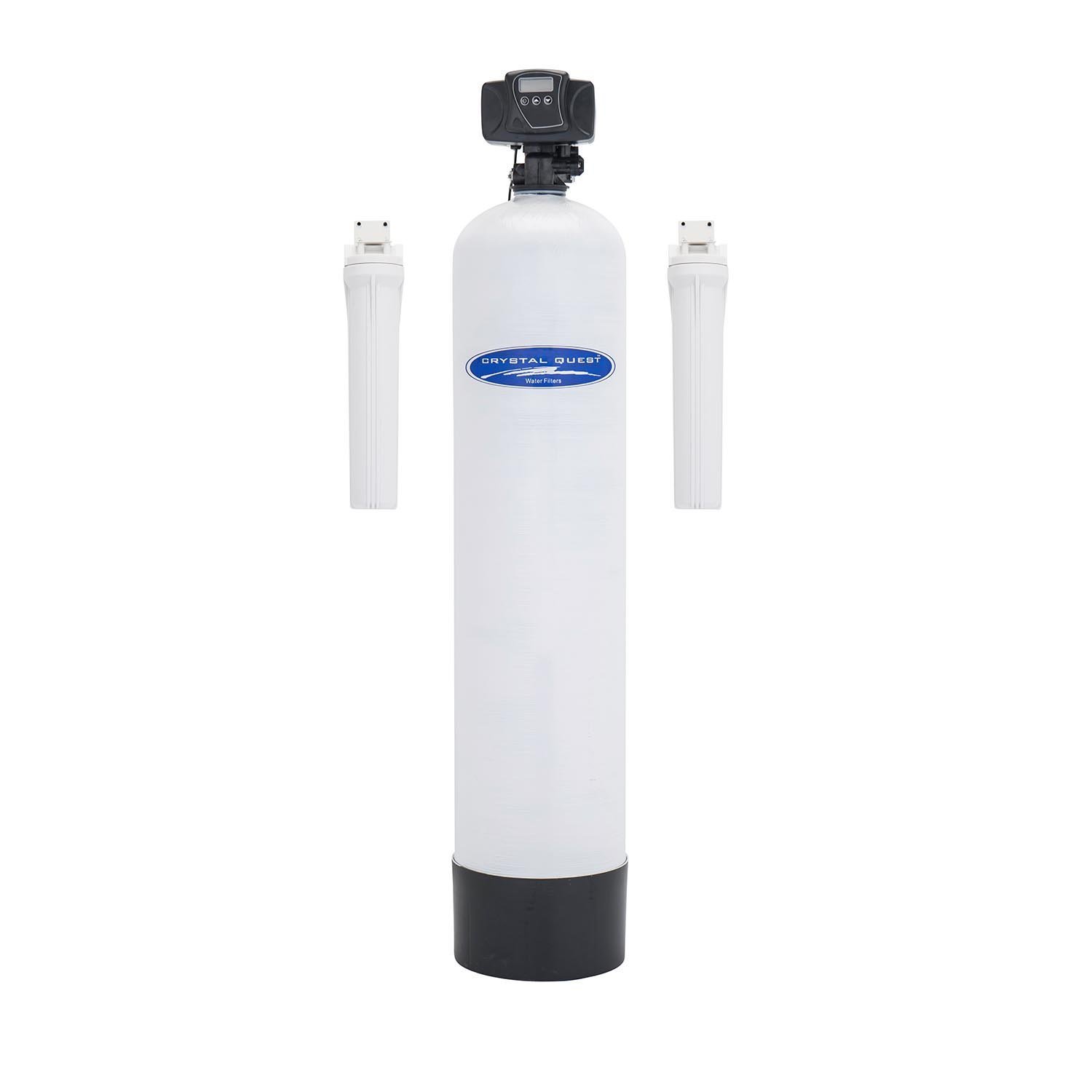

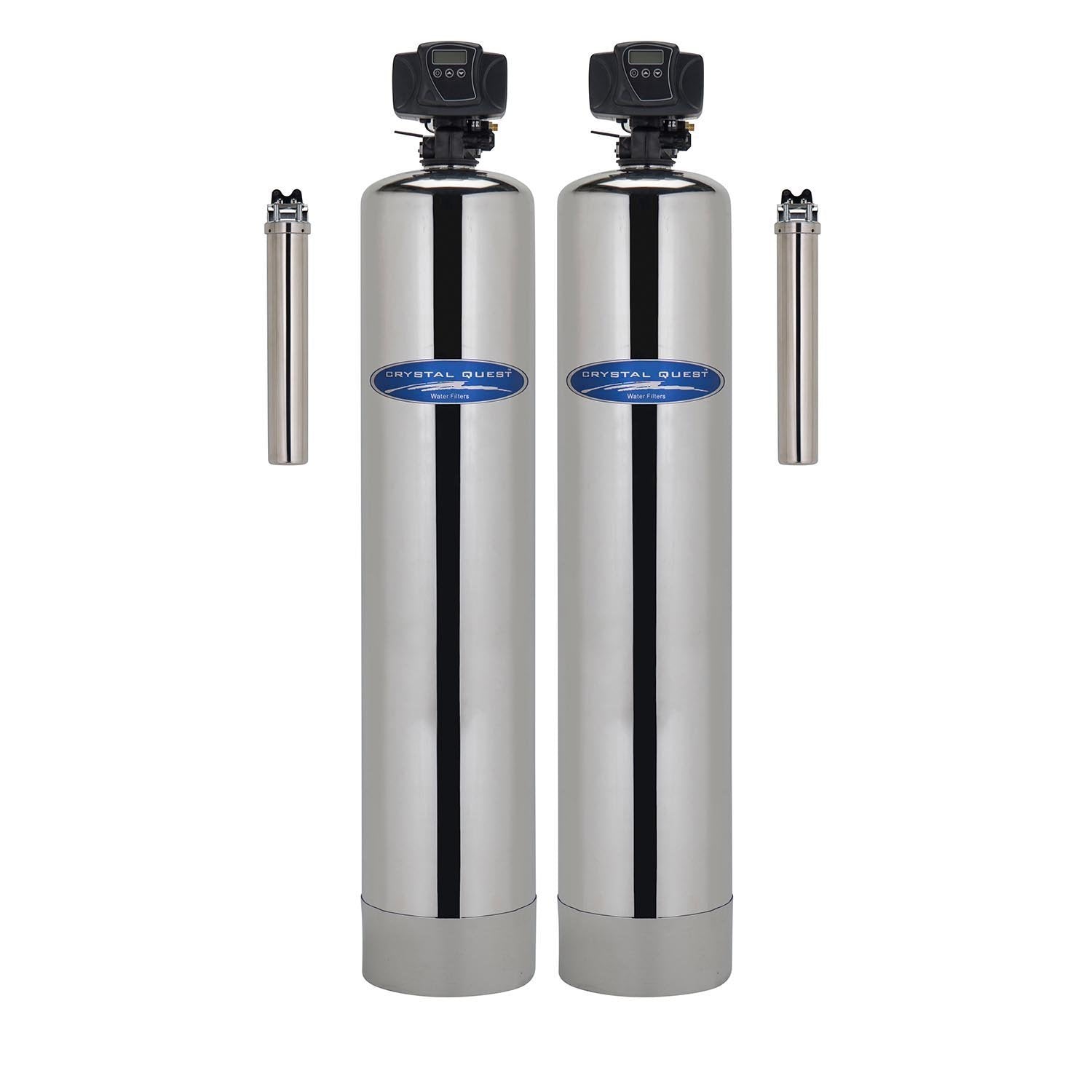

Crystal Quest® Fluoride Whole House Water Filter

Remove Fluoride from Your Drinking Water

Our Fluoride Removal Whole House Water Filters utilize a high capacity Eagle Activated Charcoal Fluoride Removal Media - Calcium GAC is a unique carbonaceous adsorbent manufactured from the treatment and carbonization of selected grades of animal bone and is used for liquid phase filtration to remove organic and inorganic species such as color bodies and many heavy metals. Bone char is different from activated carbon in that it contains both carbon surface area and hydroxyapatite lattice surface area and is produced from aged bone for better efficiency. This media has good absorption of various heavy metals and maintains alkalinity in adsorbate. It is physically stable and can be used over a wide pH range with the filtered pH generally being increased. The resulting pH will vary based on existing water conditions.

Pre-filtration

Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.

Post-filtration

Water flows through a 20" solid carbon cartridge for removing volatile organic carbon compounds (VOC's), & any remaining insecticides, pesticides and industrial solvents.

Fluoride Removal Water Filter

Water flows through a fluoride reducing mineral tank containing our Eagle Activated Charcoal Fluoride Removal Media specifically designed to have a high affinity for Fluoride, Lead, and Arsenic. It removes metals through a mixture of adsorption and chemical reaction with the media; therefore, the elimination is not reliant on ion exchange. It has a uniform particle size, is physically stable and can be used over a wide pH range. Also effectively removes lead and arsenic. In addition, we add our media, ERA® 6500 & 9500 to prevent bacteria growth.

SMART Water Filter (optional)

 Water flows through our SMART special house blend of 2 types of coconut-shell GAC (including Catalytic) with 2 types of Eagle Redox Alloys® (9500 & 6500) & anion exchange resin. This blend effectively reduces & removes heavy metals, chlorine & chloramine, pesticides & herbicides, pharmaceutical by-products & other inorganic substances such as petroleum byproducts. Ceramic and Tourmaline balls to enhance the water and maintain a more alkaline pH. To read about how GAC's work, click here. To read about the ERA® Oxidation/Reduction Process, click here.

Water Softener (optional)

Water flows through an ion exchange resin and brine water conditioner.

Media may increase hardness in the water which is why a water softener is recommended. Water is hard when it contains minerals like calcium and magnesium. You may see staining on your sinks, tubs, showers, and clothing. You may also notice less lather from your shampoos and soaps and even a feeling of film on your skin. All these are symptoms of the need for softened water. Hard water also causes a higher risk of limescale deposits in household water systems. The negative effect of limescale buildup is that pipes are blocked and the efficiency of hot boilers and tanks is reduced. This increases the cost of domestic water heating by about fifteen to twenty percent. Another negative effect of limescale is that it has damaging effects on household machinery, such as laundry machines. Water softening means expanding the lifespan of household machines, and the lifespan of pipelines. It also contributes to the improved working and longer lifespan of solar heating systems, air conditioning units and many other water-based applications.

Additional Product Options

• 12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
• Leak Detector Valve: Used to detect a water leak within a water filter system and shuts down the water supply to prevent flooding.
• Vacuum Breaker: Recommended to be installed inline ahead of water filter systems as a precaution against the rare occurrence of negative pressure (a vacuum) in the water line which can cause damage to the filter tanks and housings.
• Metered Valve: The systems come standard with a timer valve which runs the backwashing schedule on a set number of days. (For example, every 7 days). The metered valve will run the backwashing based on a set number of gallons. (For example, 3,000 gallons).
• Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.

Important to Know

Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.

###

Specifications

*When you have a softener selected

###

Replacement Media

Replacement Cartridges

###

Whole House Manual

Leak Detector Manual

Guaranteed Performance

Fluoride SMART Softener

Fluoride Eagle 2000 Anti-Scale

Aluminum Oxide Fluoride Removal SDS

Aluminum Oxide Fluoride Removal PDS

Calcium GAC SDS

Calcium GAC PDS
